F1020C

The F1000 series offers excellent performance at a very competitive price. Two models are available.

The F1020C is ideal for mostly particulates and fumes from soldering and lasing metals, glass and other materials.

Features and benefits:

  • Excellent airflow rate and suction force

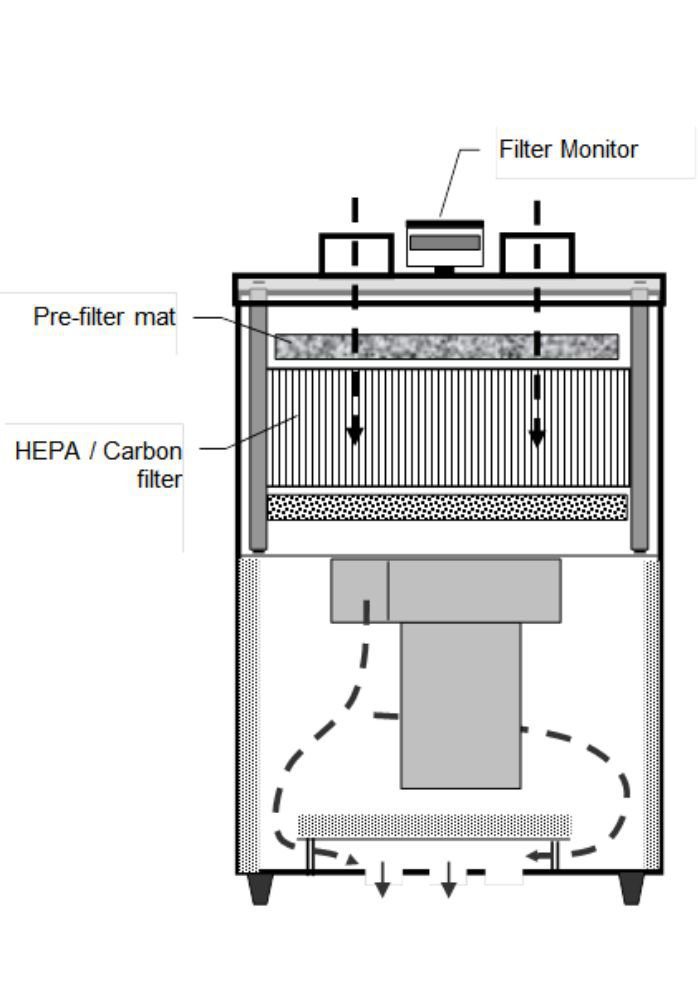

  • Three-stage filtration: Pre / HEPA and Carbon
  • HEPA efficiency of 99.9% at 0.3 micron
  • Large HEPA surface area due to mini-pleat construction
  • Operates very quietly
  • Connects to 2” and 2.5” dia. hoses (standard unit)
  • Optional air inlet for 4” dia. hoses
  • Compact size, unit fits under workbenches

Specifications

F1020C

F1020PG

No. of air inlet openings

Air inlet diameter

2.5”

2.5”

Fan capacity

250 cfm

250 cfm

System capacity

180 cfm

150 cfm

Max. Static Pressure

5” WC

5” WC

Power supply

115VAC, 60 Hz

115VAC, 60 Hz

Motor power

300 W

300 W

Noise level, approx.

58 dBA

58 dBA

Dimensions (w/d/h mm)

13.5” / 12.5” / 20”

13.5” / 12.5” / 20”

Weight, approx.

33 lbs

38 lbs
